PC/ABS Alloy
Typical Type:
Applications:

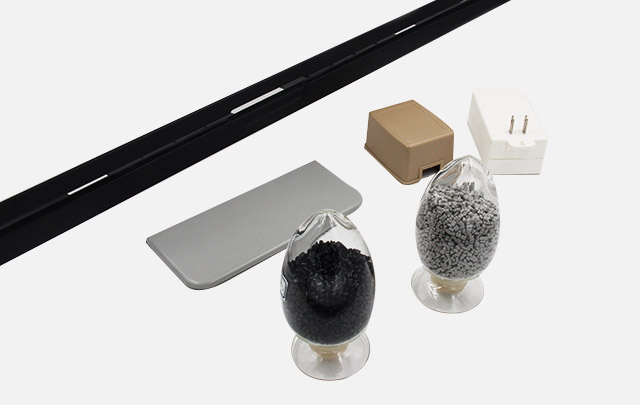

Auto (instrument board, license plate frame), electric tool and household appliances, shell of computer and electric appliance (socket, switch panel) replace PC
Product Features
High processing formability and high heat balance between ABS and PC, and have better cost performance compared with the PCPhysical Index
Comply with ROHS, good mechanical and chemical balance, good impact resistance, good surface glossiness, excellent forming and processing performance, high strength, high heat resistance, good appearance, and flame retardant grade is UL-94 V0
Test Items & Standards | Typical Type | Flame Retardant | |||
Items | Standard | Test Condition | S.I. Units | PC/ABSHI-50 | FRPC/ABS |
Mechanical Properties | |||||
Tensile Strength | ASTM D638 | 50mm/min | MPa | 50 | 50 |
Elongation | ASTM D638 | 50mm/min | % | 55 | 30 |
Flexural Strength | ASTM D790 | 2mm/min | MPa | 80 | 80 |
Flexural Modulus | ASTM D790 | 2mm/min | MPa | 2200 | 2200 |
Impact Strength, Izod notched | ASTM D256 | 3.2mm,23℃ | J/m | 350 | 300 |
Rockwell Hardness | ASTM D785 | R-Scale | - | 110 | 110 |
Thermal Properties | |||||
Heat Distortion Temp | ASTM D648 | 0.45MPa,6.4mm | ℃ | 120 | 115 |
1.8MPa,6.4mm | 100 | 105 | |||
Electrical Properties | |||||
Volume Resistivity | ASTM D257 | - | Ω.cm | 1016 | 1016 |
Others | |||||
Glass Fiber | -- | -- | % | -- | -- |
Specific Gravity | ASTM D792 | 23℃ | g/cm3 | 1.14 | 1.12 |
Mold Shrinkage | ASTM D955 | 23℃ | % | 0.4/0.6 | 0.4/0.6 |
Weather Resistant | ASTM D570 | 23℃,24h | % | 0.1 | 0.15 |
Flammability | UL94 | 1.6mm | class | HB | V0 |
3.2mm | HB | V0 | |||
Flammability | |||||
Melt Temp | ℃ | 220-240 | 220-240 | ||
Barrel Zone Temp | ℃ | 220-250 | 210-240 | ||
Mold Temp | ℃ | 40-80 | 60-100 | ||
Pre-Dry Requirements | 90-100℃ 4-6hr | 90-100℃ 3-6hr |
More models Details Please download and view
